BASE Trailer Models
Unlike any other platform on the market, the Chameleon AMLS range of BASEs are loaded with some amazing standard features straight out of the box!
The all Australian made BASE Trailer range is manufactured to be the most versatile and durable trailer platform on the market. With sizes from a 2m load space up to a massive 5.9m load space there is a trailer to carry almost anything to wherever you dare to take them.
Our unique AMLS (Adaptable Modular Loading System) provides a structural M12 anchor point every 350mm in both directions across the entire load deck. This AMLS Grid then forms the foundation of configuring your BASE Trailer to meet you needs with our range of LOKR Canopies and FLEXR components.
Single Axle Models BASE 2.0 | 2.4 | 3.1 | 3.8
Tandem Axle Models BASE 4.5 | 3.4 & 4.5 Narrow Flat Deck | 5.2 | 5.9
BASE 2.0
From $21,010 including GST
Load area 2000mm W x 2000mm L
Overall Length – 3937 mm
Overall Width – 2000mm
Tare Weight from – 830kgs
Approx. Weight – 542kgs
Aggregated Trailer Mass (ATM) up to 1.6mt
Registration not included.
BASE 2.4
From $21,650 including GST
Load area 2000mm W x 2400mm L
Overall Length – 4287 mm
Overall Width – 2000mm
Tare Weight from – 858kgs
Approx. Weight – 570kgs
Aggregated Trailer Mass (ATM) up to 1.6mt
BASE 3.1
From $23,340 including GST
Load area 2000mm W x 3100mm L
Overall Length – 4987 mm
Overall Width – 2000mm
Tare Weight from – 916kgs
Approx. Weight – 559kgs
Aggregated Trailer Mass (ATM) up to 1.6mt
BASE 3.8
From $25,620 including GST
Load area 2000mm W x 3800mm L
Overall Length – 5687 mm
Overall Width – 2000mm
Tare Weight from – 973kgs
Approx. Weight – 683kgs
Aggregated Trailer Mass (ATM) up to 3.5mt
BASE 3.4 Narrow Flat Deck
From $36,770 including GST
Load area 2000mm W x 3400mm
Overall Length – 5337mm
Overall Width – 2000mm
Tare Weight from – 1300kgs
Approx. Weight – 838kgs
Aggregated Trailer Mass (ATM) up to 3.5mt

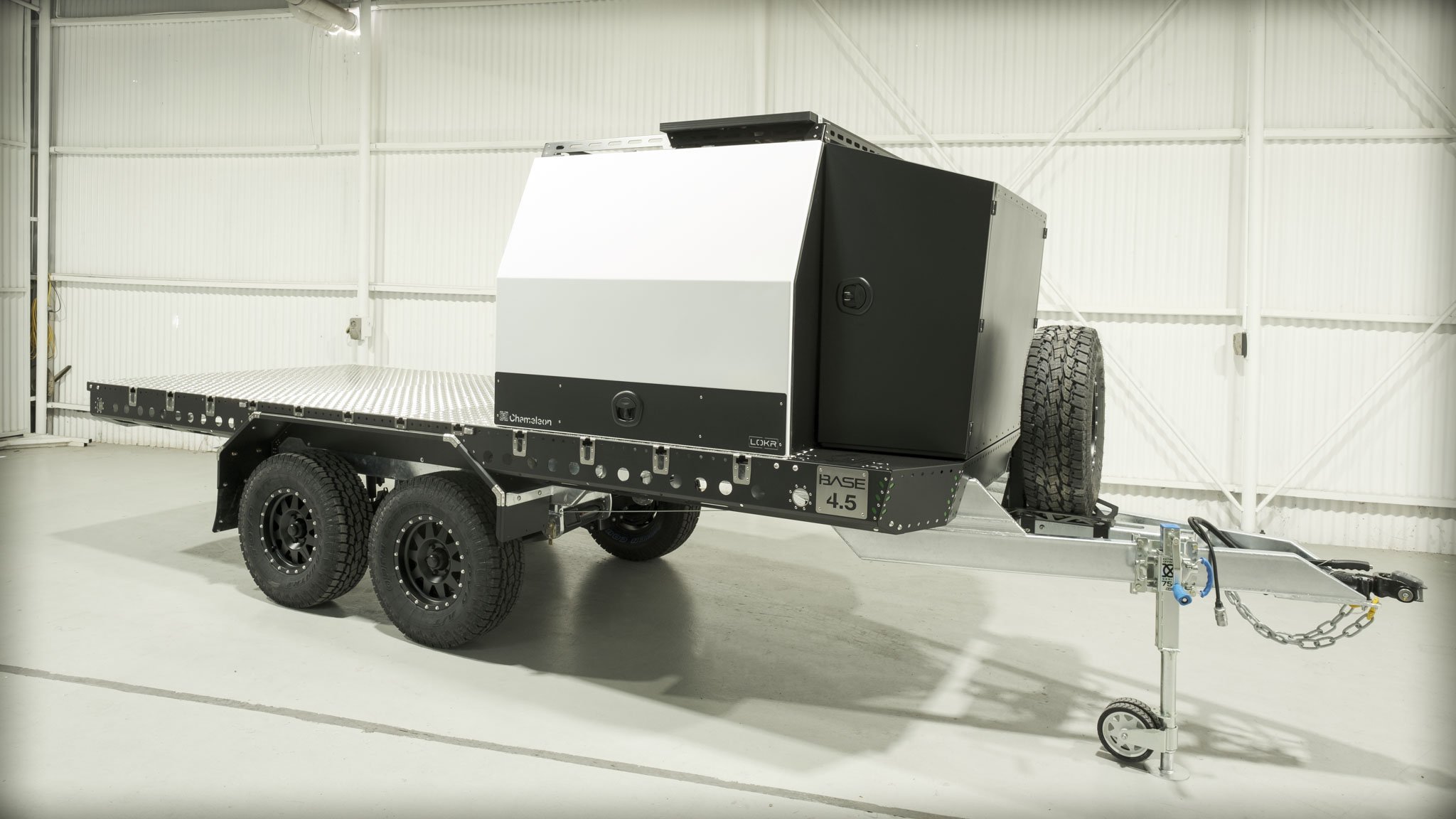

BASE 4.5 Narrow Flat Deck
From $37,840 including GST
Load area 2000mm W x 4500mm
Overall Length – 6387mm
Overall Width – 2000mm
Tare Weight from – 1691kgs
Approx. Weight – 919kgs
Aggregated Trailer Mass (ATM) up to 3.5mt

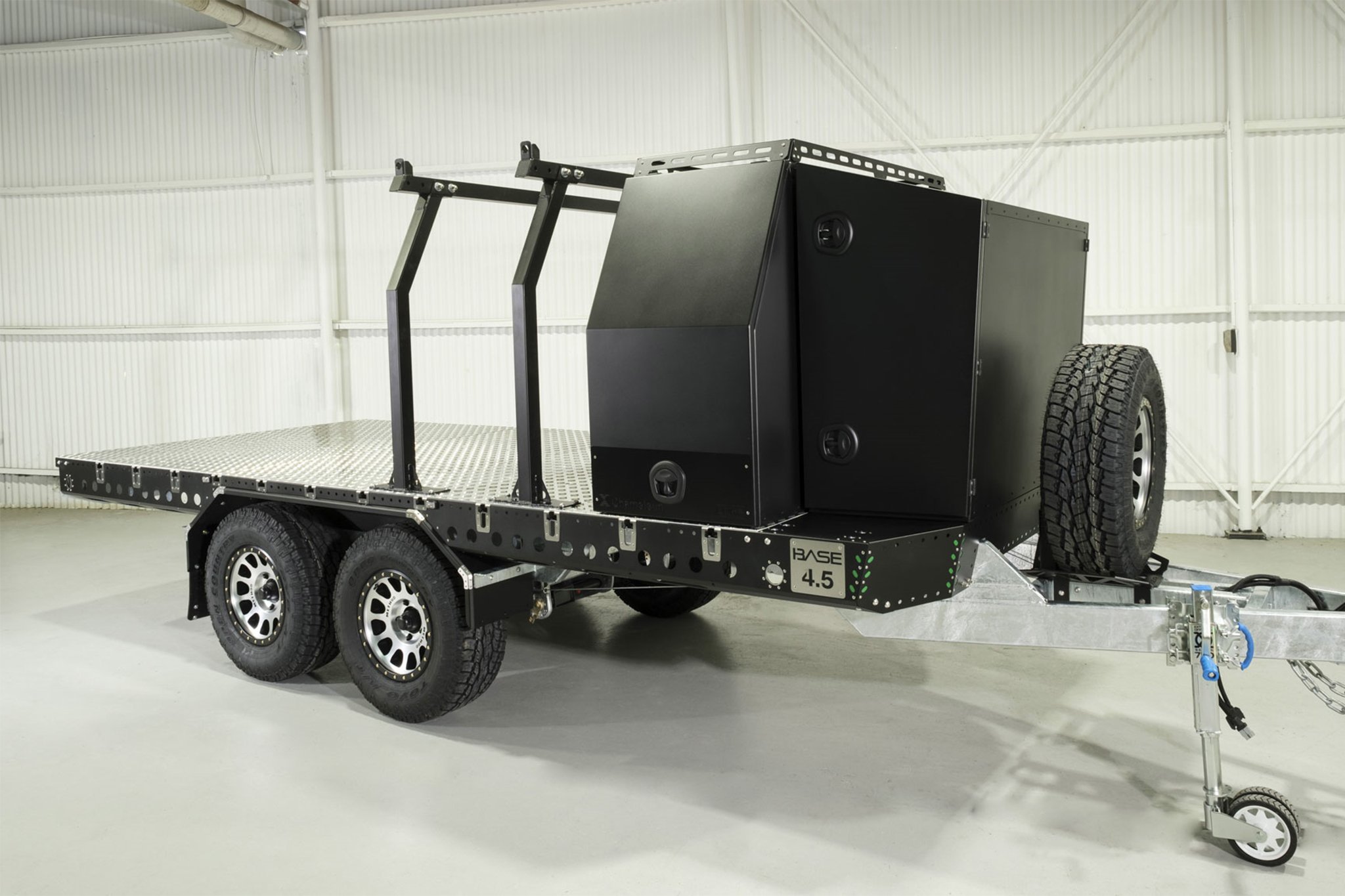

BASE 4.5
From $36,700 including GST
Load area 2300mm W x 4500mm
Overall Length – 6397mm
Overall Width – 2000mm front / 2300 rear
Tare Weight from – 1411gs
Approx. Weight – 867kgs
Aggregated Trailer Mass (ATM) up to 3.5mt
BASE 5.2
From $39,620 including GST
Load area 2300mm W x 5200mm L
Overall Length – 7097mm
Overall Width – 2000mm front / 2300mm rear
Tare Weight from – 1471kgs
Approx. Weight – 925kgs
Aggregated Trailer Mass (ATM) up to 3.5mt
BASE 5.9
From $40,880 including GST
Load area 2300mm W x 5900mm L
Overall Length – 6387mm
Overall Width – 2000mm front / 2300mm rear
Tare Weight from – 1530kgs
Approx. Weight – 1009kgs
Aggregated Trailer Mass (ATM) up to 3.5mt
*Weights are approx. and can vary depending on your configuration, our team can assist in confirming your specific requirements.
** Prices are subject to change, please speak with our team to confirm.
Standard Features
Australian made CNC laser cut HDGal chassis.
350 lt. front toolbox powder coated in matte black.
Cruisemaster DO-35 coupling.
Cuisemaster XT coil spring independent trailing arm suspension with twin shock and 12" electric brakes (Single axle)
Cruisemaster ATX coil spring independent trailing arm suspension with remote reservoir shock and 12" electric brakes. (Tandem only)
3 Method Race Wheels 301 (Matte Black) 16" rims and Yokohama Geolandar x-AT G016 (Single)5 Method Race Wheels 301 (Matte Black) 16" rims and Yokohama Geolandar x-AT G016. (Tandem)
6 x 139.7PCD 9/16UND Wheel studs, 0 offset.
3.5MT ATM upgradable to 4.5MT (Tandem only)
Max 2000kg without a trailer breakaway system. (over 1.6MT requires 12" brake upgrade)
Optional Extras
Our full LOKR & FLEXR range
70l or 110l water tanks
Plumbing options
Suspension upgrades including Airbags
Wheel & Tyre upgrades
Increase to ATM of 4,500kg for tandem axle models.
Electrical packages
Saleable Configurations
Tradie Package
From $15,160 including GST
Passenger Side
Bushman 130L fridge
Compact single drawer (under fridge)
Compact single drawer
Drivers side
Empty for storage
*Drawer size is determined with canopy Size
Tradie Plus Package
From $17,190 including GST
Passenger Side
Bushman 130L fridge
Compact single drawer (under fridge)
Compact single drawer
Middle divider
Drivers Side
2 x Medium single drawer
*Drawer size is determined with canopy Size
Adventure Package
From $18,110 including GST
Passenger Side
Bushman 130L fridge
Slide out kitchen (under fridge)
Compact single drawer
Middle divider
Drivers side
Empty for storage
*Drawer size is determined with canopy Size
Adventure Plus Package
From $19,900 including GST
Passenger Side
Bushman 130L fridge
Slide out kitchen (under fridge)
Compact single drawer
Hanging shelf
Middle divider
Drivers Side
2 x Medium single drawer
Floating shelf
*Drawer size is determined with canopy Size
- Available in LOKR 3.0 & 4.0 Wide Tall.
-LOKR canopy colour is Textura black
- Internal colours are Gunmetal Grey
- Prices are subject to change, please speak with our team to confirm.
